Nozzle burner

Product Introduction

Nozzle burner adopts unique Cup premix structure design , enabling rapid and sufficient mixing of combustion air and gas inside the nozzle, and completing stable and complete combustion in an extremely small combustion area. The high temperature hot gas generated during the combustion process can Directly acts on the workpiece surface , significantly improving heating efficiency.

Due to the uniform distribution of combustion products, the nozzle burner can generate heat Uniform transfer to workpiece , effectively reducing local overheating phenomena. The combustion process inside the nozzle is stable and controllable, so that the burner has Uniform heat output, stable flame, precise control Such advantages are applicable to industrial heating processes that require high temperature uniformity.

Product Advantages

1, reasonable structural design, nozzle burner Easy to disassemble and easy to maintain
2. The combustion reaction speed is fast High flame intensity and fast response
3. The combustion process is completed stably inside the nozzle Even flame temperature distribution
4, Compatible All standard control systems and flame safety systems
5. Suitable for most industrial applications, the rated power range of the model is 10～100×10³ kcal/h
6. Adopting modular design, Flexible installation , can meet different heating process needs
7. The overall structure is strong and durable Reliable operation, low maintenance cost and long service life

Technical parameters and scope of application

• Flame temperature: 1000 ～1100℃

• Air flow rate: 10～30 m/s

• Adjustment range: 1: 4

• Adjustment method: Switch adjustment / Proportional adjustment

Industry Applications

Nozzle burners are widely used in the following industries and equipment:

• Food baking oven

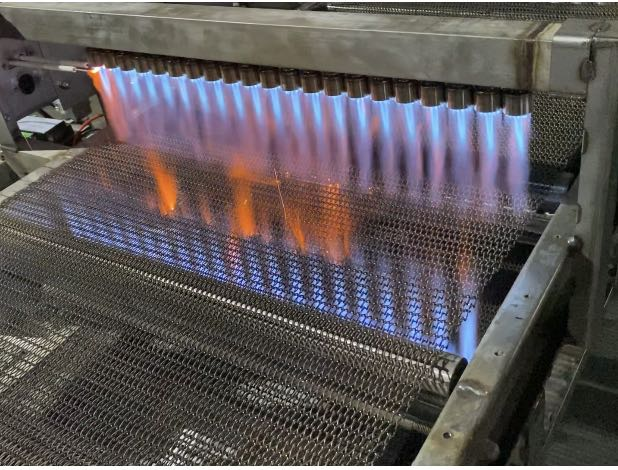

• Food tunnel furnace

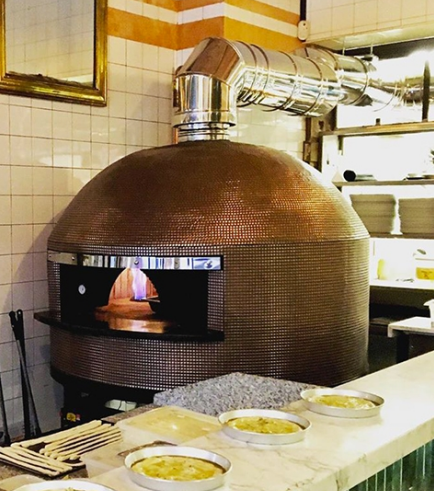

• Pizza stove

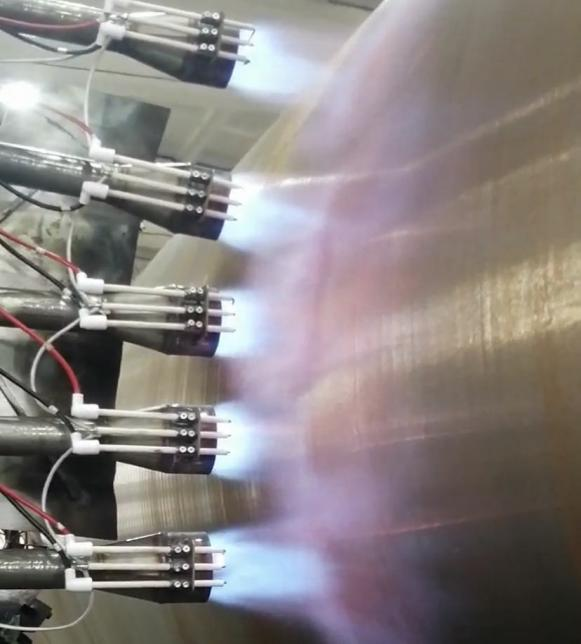

• Flame treatment equipment

• Industrial heating occasions such as drum heating systems
